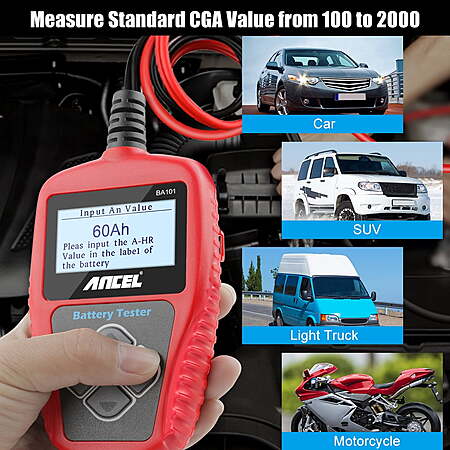

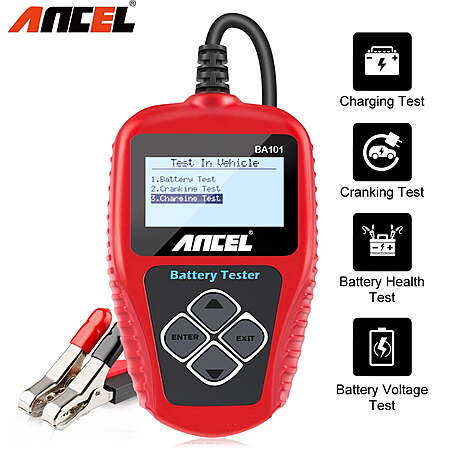

| Product Description: | ANCEL BA101 can be used to test a wide range of 12V batteries including Starting, Lighting, and Ignition (SLI), Deep Cycled and Marine (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM), and GEL cell. The major battery standards JIS, SAE, EN, DIN, and IEC are supported. BA101 12V car battery tester can easily, quickly, and accurately measure the actual cold cranking amps capability, the health status of the battery itself, and the common fault of the vehicle starting system and charging system. How To Use ANCEL BA101: It can make sure the battery status, including voltage, CCA, electronic resistance, rated CCA, charging value, healthy value and testing result in one second. Once input the AH value—battery rated capacity, which is marked in the label of the battery. Press UP/DOWN key to select the Quick test, then press ENTER key to confirm. Input the rated battery capacity—xx AH, in general, the battery capacity for 12V vehicle is above 30AH. Then press enter key, the testing result will show one of these, as below Battery test result includes 5 types as following. ANCEL BA101 Battery Life Analysis and Result: Good Battery: The battery is without any problem, please be relaxed to use. Good Recharge: Good battery but low current, recharge before using. Replace: The battery is near to or already reached the end of the using life, replace battery, otherwise, bigger danger will be followed. Bad Cell,Replace: Battery interior damaged, bad cell or short circuit, replace battery. Charge-retest: Unstable battery shall be recharged and retested to avoid error. ANCEL BA101 Operating Parameters: System voltage: 12 Volts Input voltage range: 9V~15V Power requirements: No internal batteries required. Power on when hooked up during testing AH range: 30-220AH Package List: 1 x ANCEL BA101 1 x User Manual 1 x USB Cable Accurate tester result in mili seconds (tolerance±15). BA101 can test CCA100-2000, 30-220Ah. Test batteries on and off the vehicle. Battery life analysis, Life in percentage (%), Internal resistance value (m), Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating. Test result based on JIS, EN, DIN, SAE and IEC standards. Easily read LCD screen display. Quick test: input battery volume (AH), then it can show the battery status. Vehicle cranking system test: cranking time, voltage and status. Vehicle charging system test: load voltage, unloaded voltage, ripple status and charging system status. Store the testing result, print function. |
